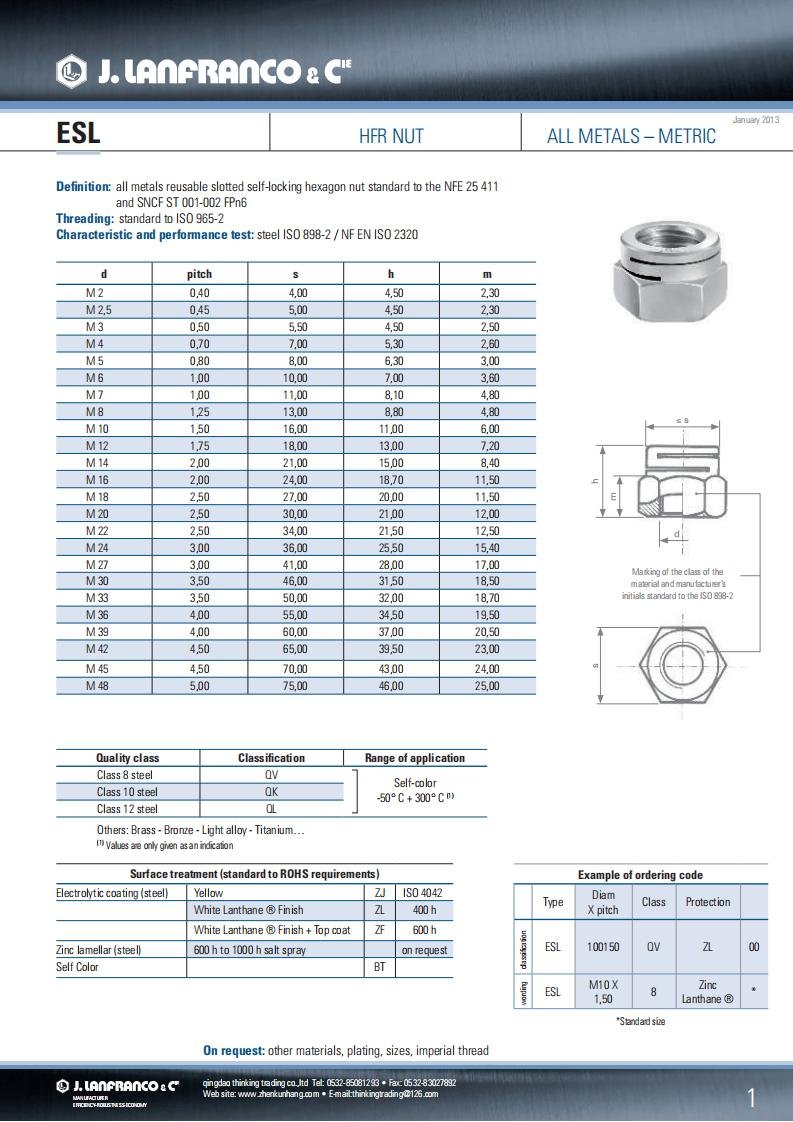

definition: all metals reusable slotted self-locking hexagon nut standard to the NFE 25 411 and SNCF ST 001-002 FPn6
threading: standard to ISO 965-2
characteristic and performance test: steel ISO 898-2 / NF EN ISO 2320

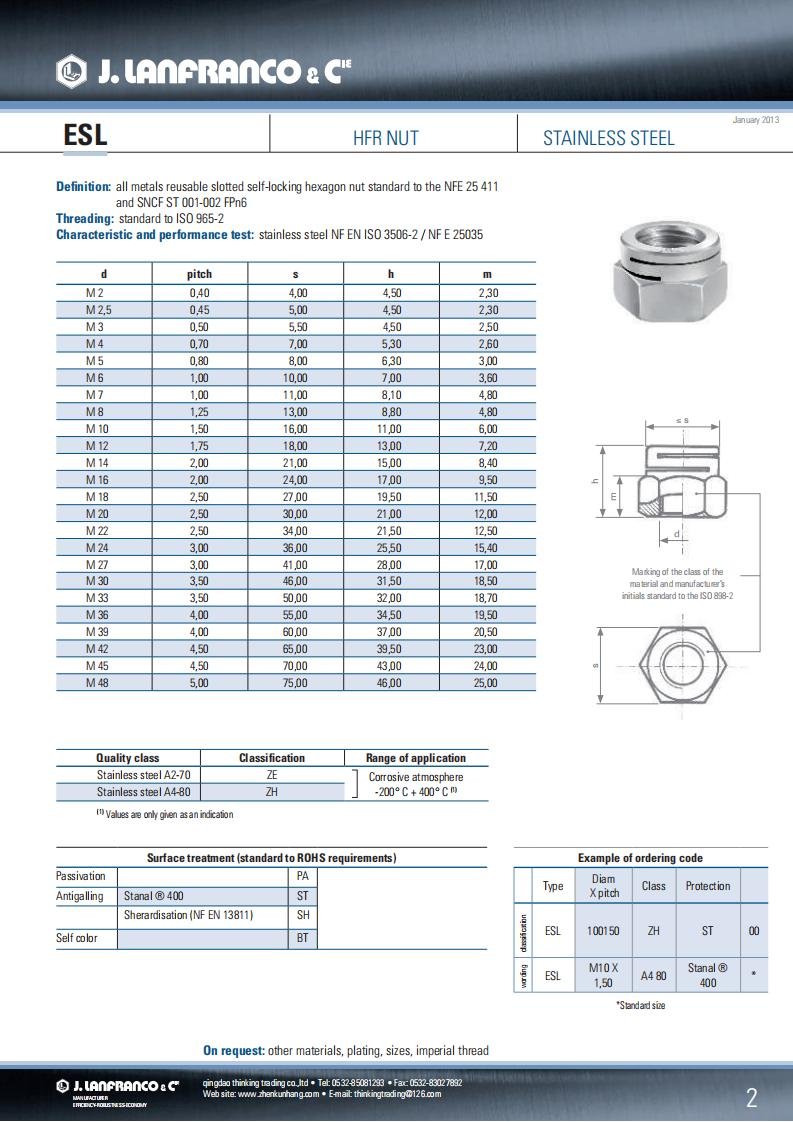

definition: all metals reusable slotted self-locking hexagon nut standard to the NFE 25 411 and SNCF ST 001-002 FPn6
threading: standard to ISO 965-2
characteristic and performance test: stainless steel NF EN ISO 3506-2 / NF E 25035
definition: all metals reusable slotted self-locking hexagon nut standard to the NFE 25 411 and SNCF ST 001-002 FPn6
threading: series UNC / UNF ANSI B1.1 and BS 1580 - BSF / BSW on request
characteristic and performance test: for steel ISO 898-2 / ISO 2320
for stainless steel ISO 3506-2 / NF E 25035
definition: all metals reusable slotted self-locking hexagon nut
threading: series UNC / UNF ANSI B1.1 and BS 1580 - BSF / BSW on request
characteristic and performance test: for steel ISO 898-2 / ISO 2320
for stainless steel ISO 3506-2 / NF E 25035
definition: all metals reusable slotted self-locking hexagon flange nut with free washer threading: standard to ISO 965-2
characteristic and performance test: for steel ISO 898-2 / ISO 2320 for stainless steel ISO 3506-2 / NF E 25035
definition: all metals reusable slotted self-locking hexagon flange nut with free washer threading: series UNC / UNF ANSI B1.1 and BS 1580 - BSF / BSW on request characteristic and performance test: for steel ISO 898-2 / ISO 2320
for stainless steel ISO 3506-2 / NF E 25035
ease of use:
? From 25 mm to 6 meters long
? Unlimited quantity of nuts and / or screws can be positioned within the channel
? Range of diameter for nuts and / or screws
? Range of type of nuts and/or screws (possible combination)
? Equidistance between products
? Internal technical setup (oval holes, lights, spring mounts, prepunched rivet holes)
? Channels may be manufactured straight, bent and / or curved.
ease of use:
? From 25 mm to 6 meters long
? Unlimited quantity of nuts and / or screws can be positioned within the channel
? Range of diameter for nuts and / or screws
? Range of type of nuts and / or screws (possible combination)
? Equidistance between products
? Internal technical setup (oval holes, lights, spring mounts, prepunched rivet holes)
? Channels may be manufactured straight, bent and / or curved.
詳情訪問： 406-lanfranco全金屬自鎖螺母.pdf
